Feature

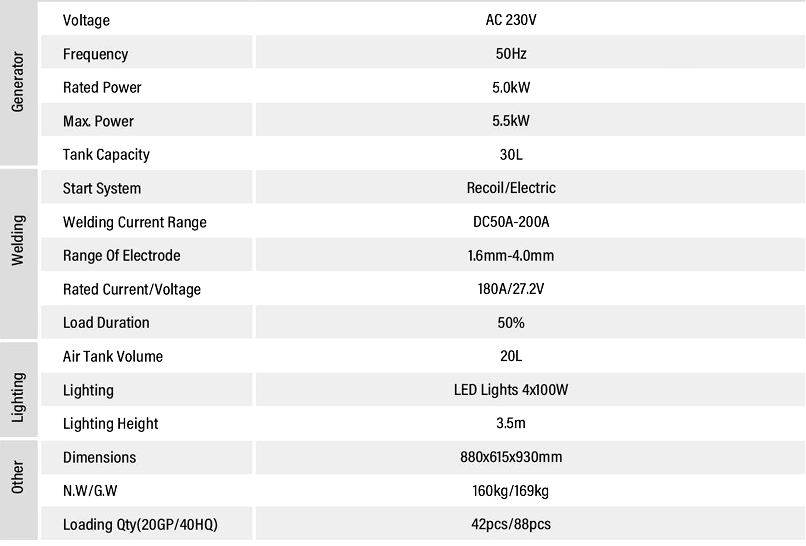

Technical details

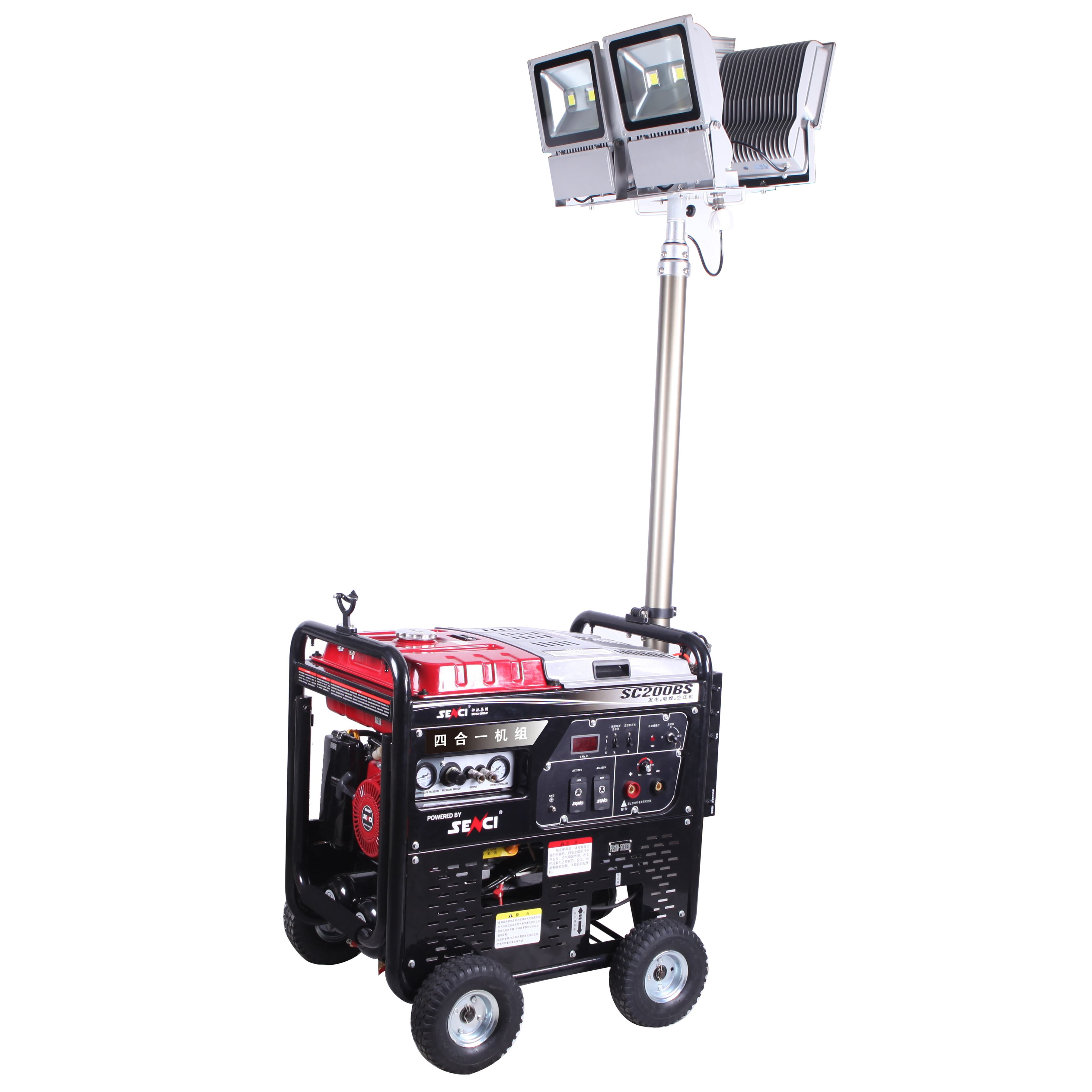

- Multi-function in DC welding；AC generator output；air compressor and lighting
- Two stages air compressor for high pnumatical tools
- Large tank for air compressor higher eficiency
- It can welding 4.0mm electrode for long time
- Can out put AC 5.0kw steadily
- Lights can lift to 4.5m high by operation
- Duty Cycle0.5
- OCV（V)DC 75V
- Current range(A)DC 50-200
- Welding voltage(V)DC 22-28V
- Welding rod1.6-5.0mm
- Rated current/voltage(A/V)180A / 27.2V
- Auxiliary rated power output5.0kW AC 240V Or 120V
- Engine ModelSC420
- Max.power/Speed(RPM)--5KW/3600
- Displacement(cc)Gas
- Start methodRecoil/E-start / Remote control
- Capacity(L)20
- Stage1
- Flow100L/min
- Pressure range0.6-0.8Mpa
- Lights lift4.5m
- Lights powerLed/4×100W
- Luminous flux80-100lm/W
- Fuel tank capacity(L)30
- Protection classIP23
- Dimension(mm)850.5*583*780
- Net weight(kg)168.5
